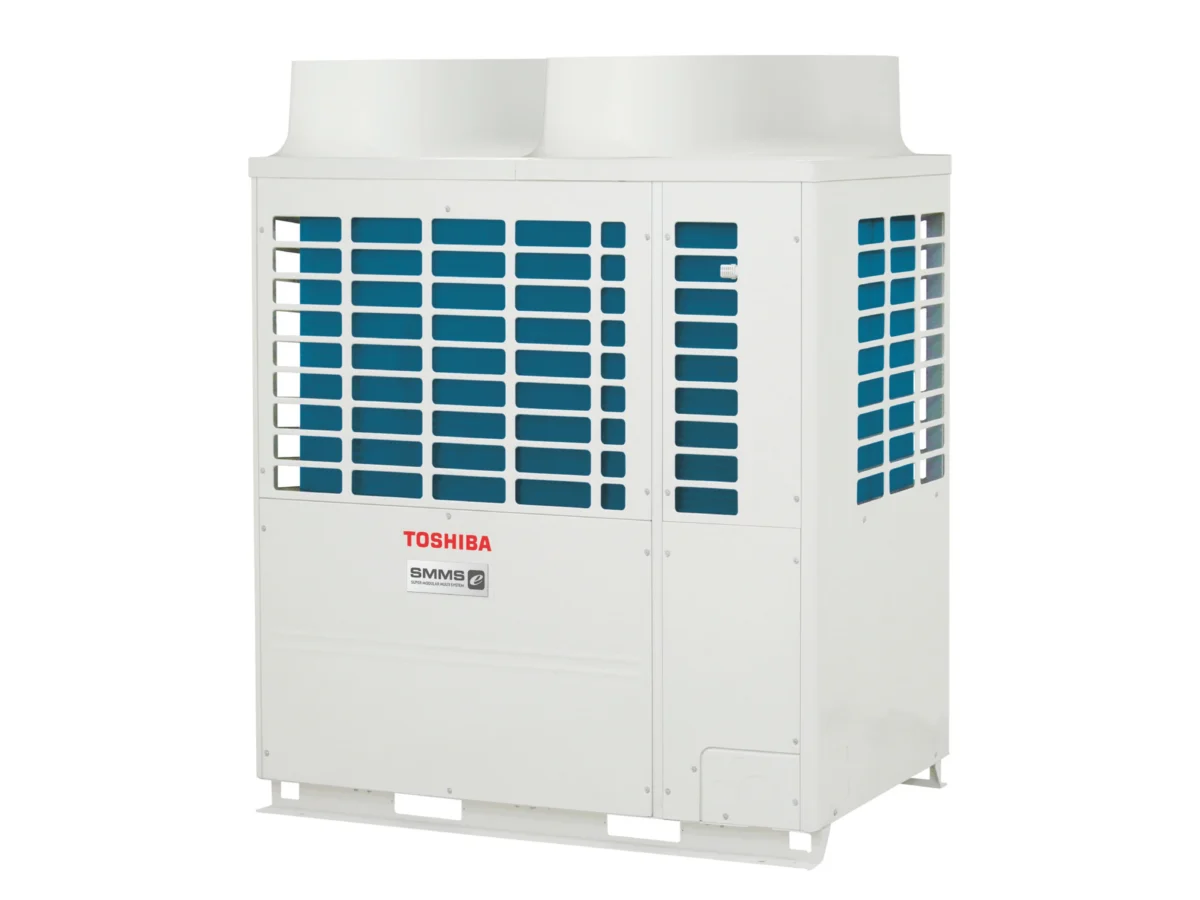

Toshiba VRF Top Discharge SMMS-e
Ideal for offices, hotels, commercial spaces and shopping malls, the Toshiba SMMS-E VRF delivers powerful performance with optimized energy consumption and an ambient temperature operation range. Available in capacities from 8–22 HP, this cooling solution is also offered with the intelligent Toshiba SMMS Wave Tool to enable convenient system commissioning and testing even during power failures.
Features
Efficient Performance
- Excellent overall capacity range and the highest ISEER upto 8.6
- Intelligent VRF control, including precise refrigerant control of over 64 indoor units individually using over 300 sensors
Expanded Capacity Range
- Enhanced versatility with 3 new larger capacity units, ranging from 8 to 22 HP, suitable for diverse building sizes
- Industry-leading installation flexibility with reduced weight restrictions for easier installation and space-efficient design for layout flexibility
- System capacity expanded to connect up to 60HP in one system, with up to 64 connectable indoor units
SMMS Wave Tool**
- Facility to read and write data from outdoor unit directly on smartphone without PC connection or cabinet opening
- Simplifies testing and commissioning without cabinet opening
- Access to product data, system data, fault history, testing and commissioning even during power failures
- Facilitates data sharing via email
DC Twin-Rotary Compressor
- Wide range compressor, making it more efficient and powerful
- Enhanced hardness of DLC-coated vane for reduced friction and improved reliability and performance
Piping Design Flexibility
- Maximum piping length of up to 1,000 meters, enabled by Toshiba's advanced technology
- Increased installation flexibility with a piping distance of 90 meters from the first branch to the furthest indoor unit
- Industry-leading maximum equivalent length of 235 meters between the outdoor unit and the farthest indoor unit
- Top-class vertical distance capability, allowing up to 40 meters between indoor units, equivalent to an 11-story building
New Heat Exchanger
- Smart system controls enable the selection of the most efficient heat exchanger size, optimizing energy savings
- Backup ope4-way heat exchanger placement ensures balanced airflow in all directions for uniform cooling and heatingration feature in case of compressor failure
Reliability
- Expanded ambient operational range with heating operations starting from -25°C
- Backup operation for uninterrupted functioning under All Inverter Control, compensating for any compressor or header unit failure, available in both single systems and modules
- Reliability rotational control, enhancing overall system dependability by evenly distributing the workload among compressors under varying conditions
VRF AHU Connectivity
- Customized solutions for large commercial buildings, shopping malls, hotels, and offices with Toshiba's design flexibility.
- Integration of the DX coil interface with the SMMSe outdoor unit for efficient AHU connectivity
**Optional Accessory
Technical Advantages
13% Bigger FCU Fan
stronger onboard airflow distribution
10% Larger Heat‑Transfer Surface
more efficient cooling
10 Louver Settings
precise airflow direction for comfort
Inverter Technology
rapid cooling, stable temperatures, and energy saving
Eco‑Friendly R32 Refrigerant
zero ODP, low GWP
Double Clean System
Aqua Resin Coated Coil + 20‑minute Self‑Cleaning Dry cycle
Magic Coil
reduces dust, oil, and allergen accumulation
Easy Maintenance
removable pre‑filter and front panel
Bat Wing Fan
improved thermal transfer and lower noise

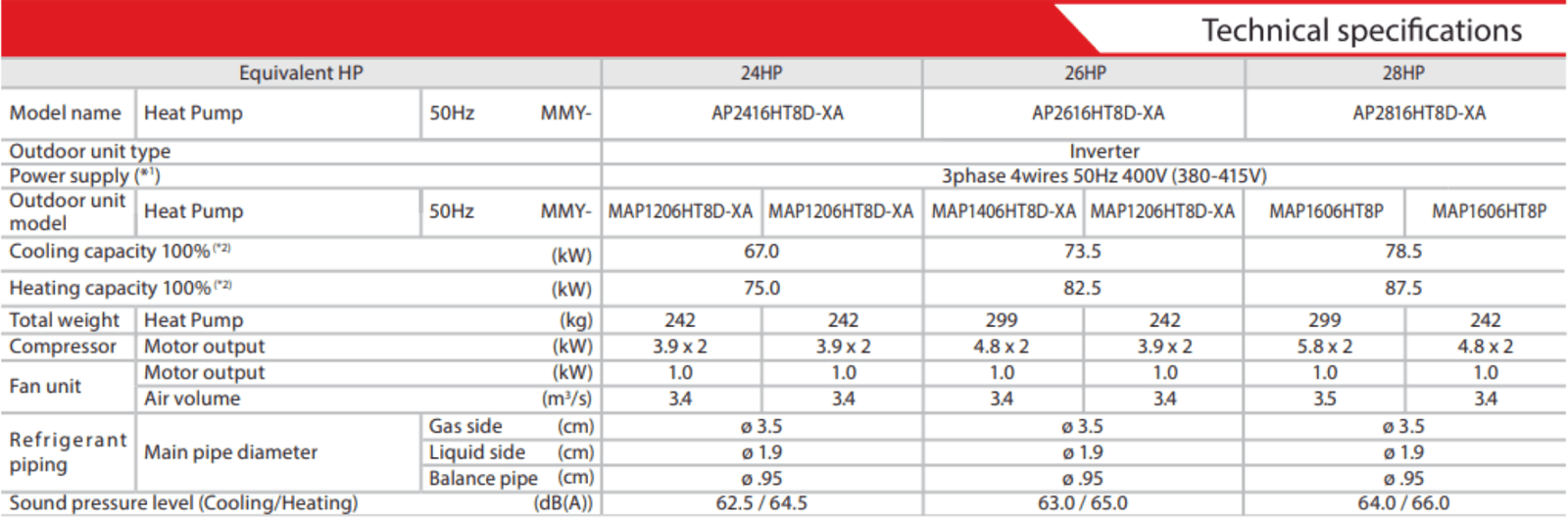

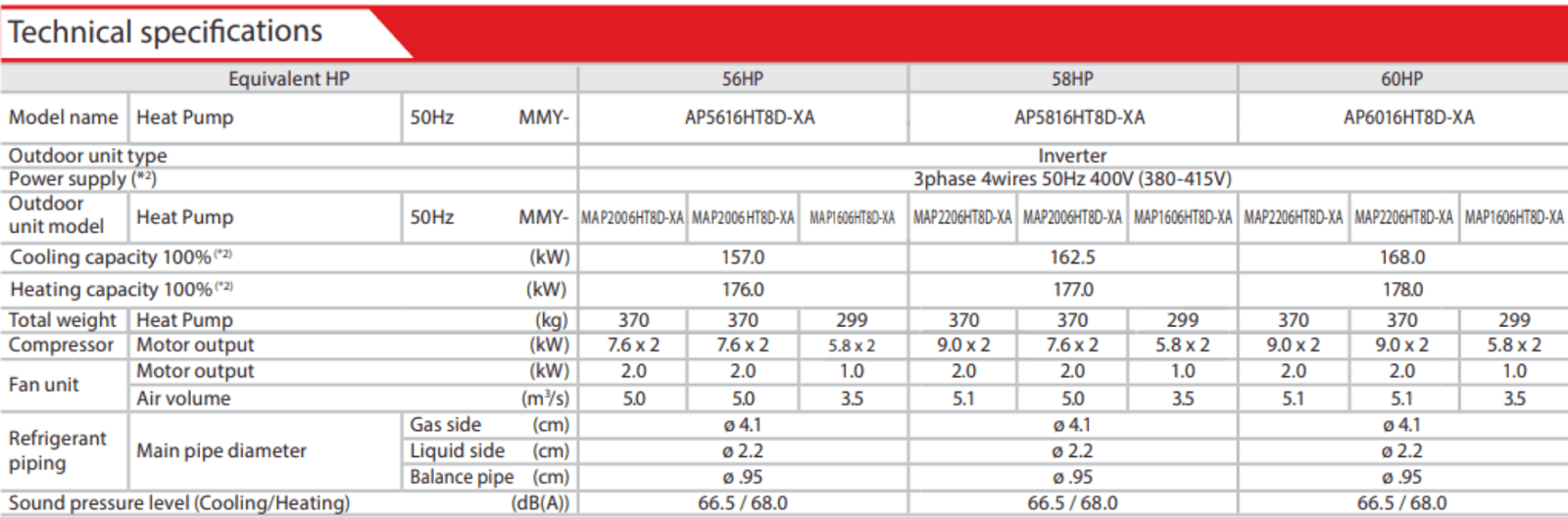

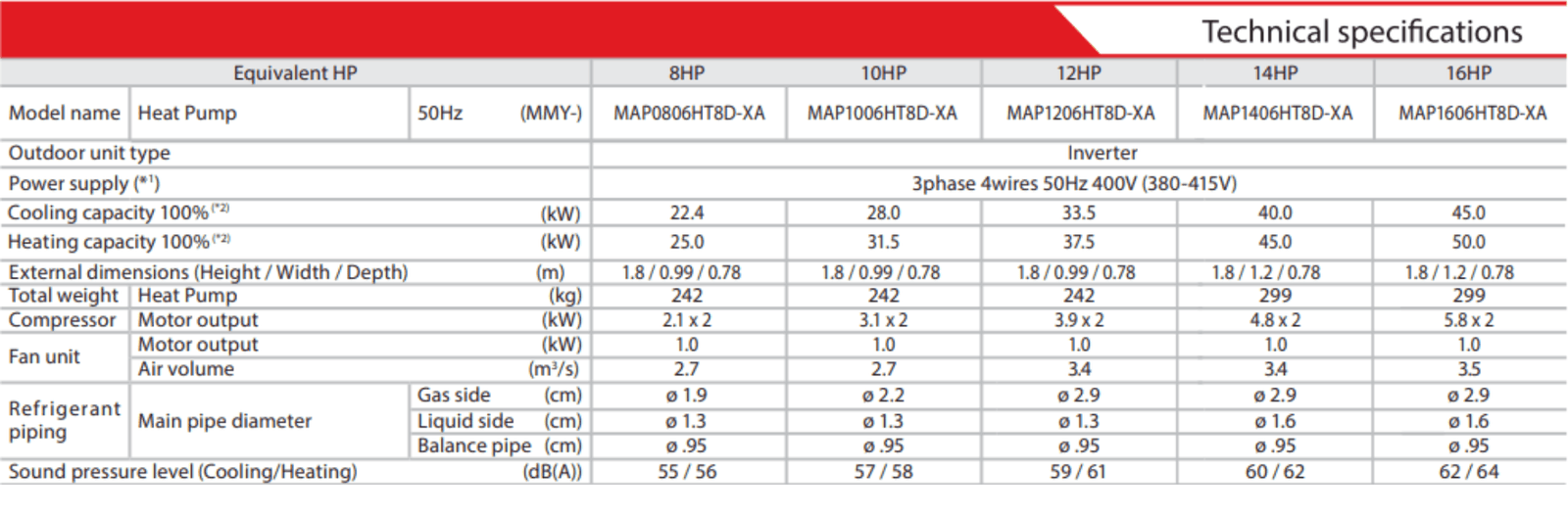

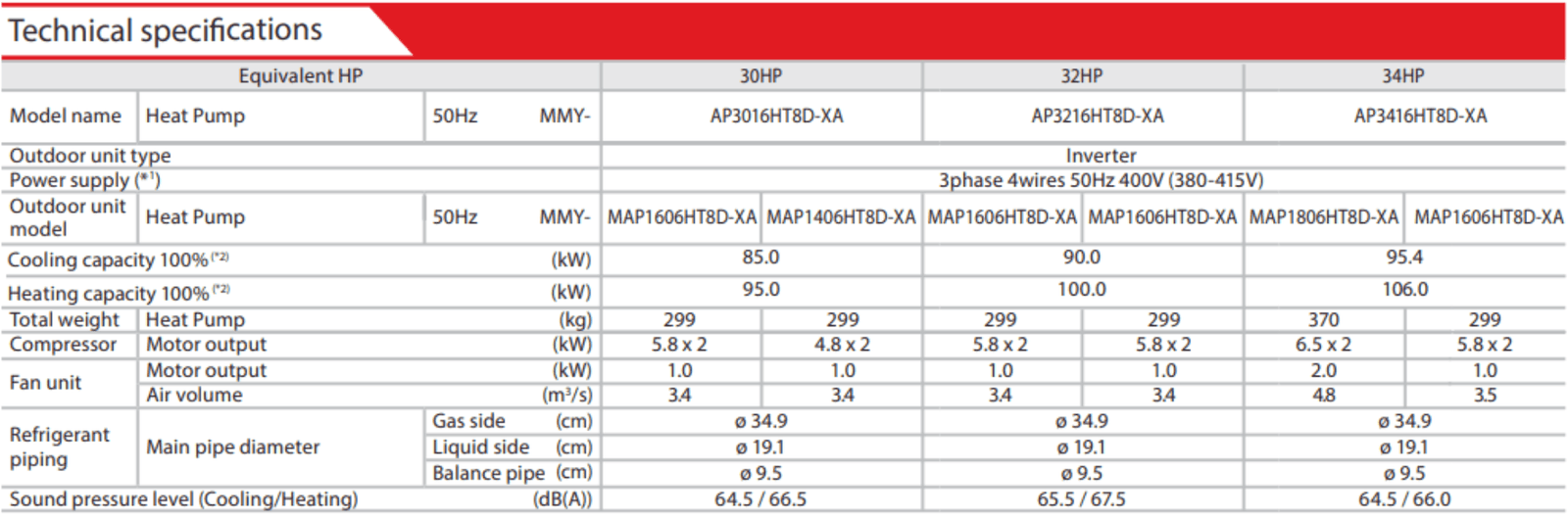

Specifications
